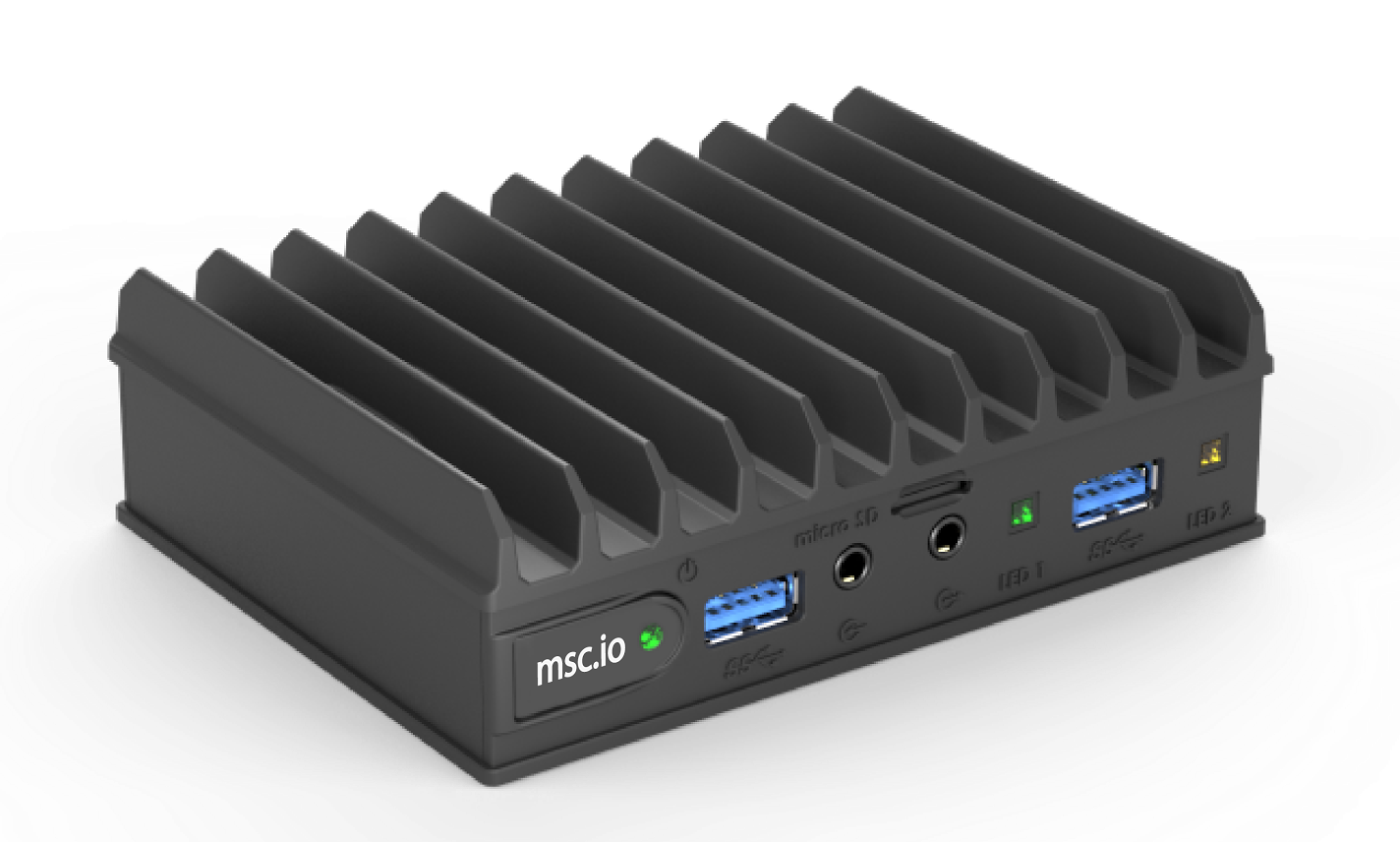

IPC-250

Box-PC with Intel Atom X7-E3950
Size 112 x 85 x 35 mm
Operating  up to -40° to 70° C
Warranty 5 years

create your own website
Mobirise

Features and Options

Theme Description Theme Description
CPUIntel Atom X7-E3950
Quad Core 1,6 ... 2,0 GHz
2MB L2-Cache
TDP 12W
Ethernetup to 4x GbE LAN ports (RJ-45) *
GPUIntel HD Graphics 505
HDMI max. 3840 x 2160 @ 60Hz
DP max. 4096 x 2160 @ 60Hz
Wireless LANWLAN 802.11b/g/n Wifi USB-Module *
RAMDDR3L-1866, 1 slot
max. 16 GB, non-ECC
Cellular Communication3G or 4G / EU- or US-standard *
StorageM.2 2242 / 2260 /2280* max. 1TB
eMMC
SD-CardMicro-SD slot support SD/SDHC cards
Transfer rates up to 25 MB/s
Display1x mini DP 1.2 max. 4k @ 60Hz
1x HDMI 1.4 max. 4k @ 60Hz
RS2321x Serial communication port
COM1: RS232 via mini serial connector
Audio
Input
Analog stereo Microphone input
Digital S/PDIF input
3.5mm jack
USBup to 8 ports *
2x USB 3.0
6x USB 2.0
Audio
Output
Analog stereo output
Digital 7.1+2 channels S/PDIF output
HDMI & DP audio
3.5mm jack
Lifecycle2032
OS-SupportWindows 10, Linux Mint
BixCS-Runtime
Warranty5 years
*Extension Card necessary
Mobirise

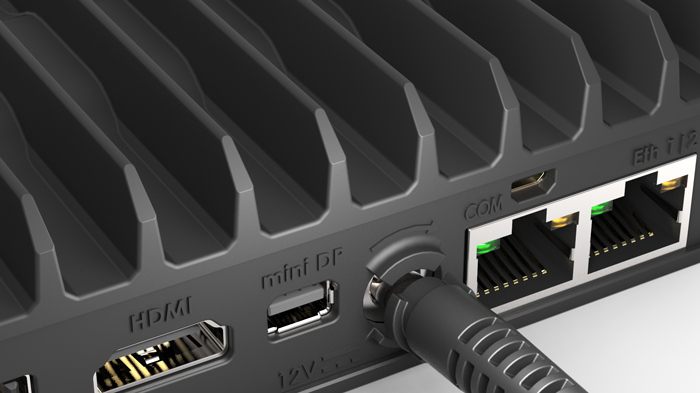

DC 24V Wide range input

Supply the IPC-250 from any DC-source in the range DC9V .. DC36V. Maximum Power consumption is lower than 30 W totally.

Mobirise

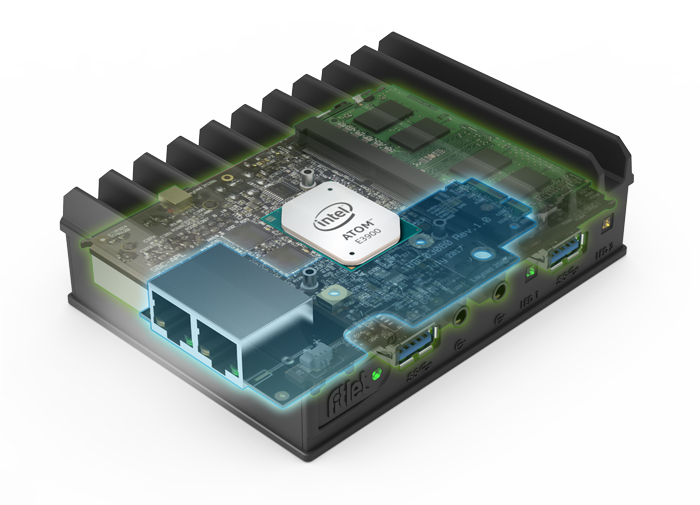

Flexible

Adjust the IPC-250 with different extension cards to your application. Customized extensions cards are on demand available.

Mobirise

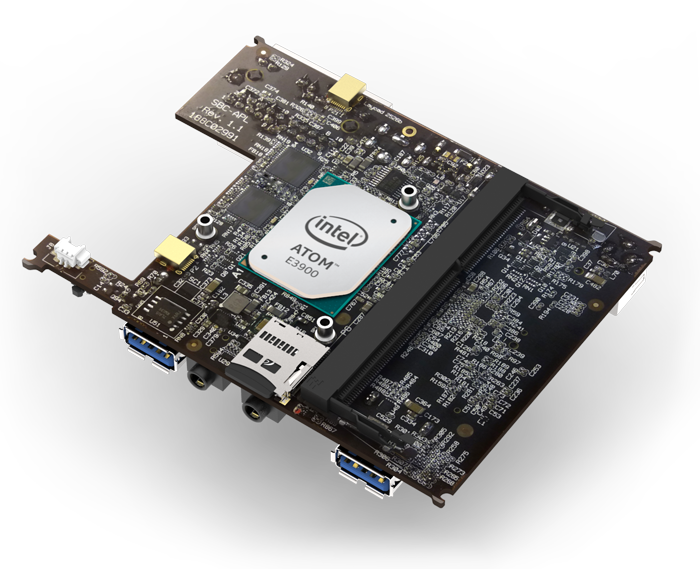

Scalable

IPC-250 can be delivered with optional CPU's like intel x5-3930 or Celeron J1911 on demand.

Mobirise

LAN & WLAN & Cellular

Combine LAN, WLAN and / Cellular communcation in the IPC-250.

Mobirise

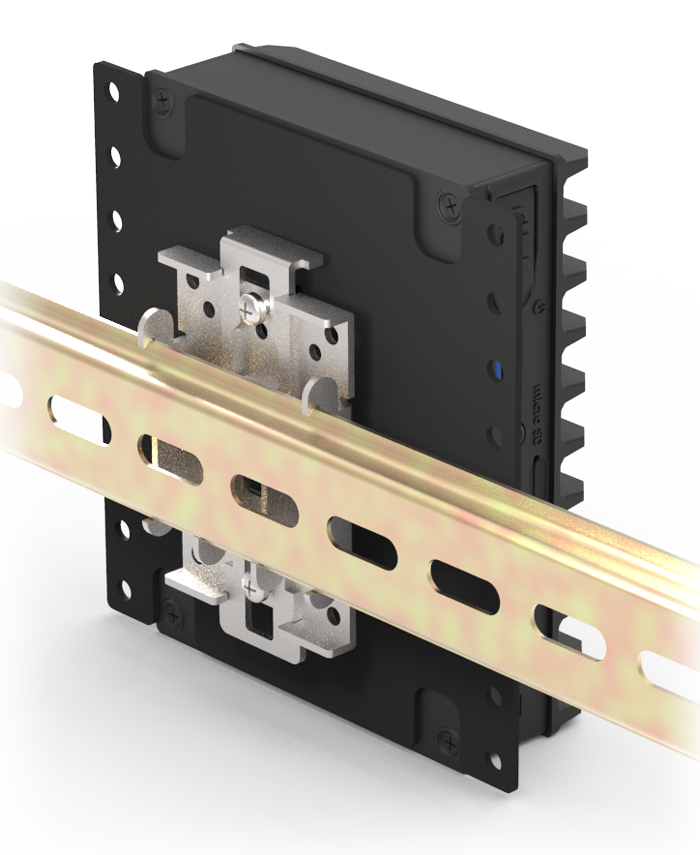

Mounting Options

Mount the IPC-250 via Adapter either to DIN-RAIL's or VESA-Slots on the backside of Displays or walls.

Mobirise

Industrial Top cover

Mount IPC-250 with this cover directly without bracket and profit from a smaller footprint.

Specification

Theme Description Theme Description
Supply VoltageDC 9 ... 36VComplianceFCC/CE, RoHS-II
Poiwer Consumption5 ... 15WMTTF> 100,000 hours
Dimensions108 x 83 x 24 mmWarranty5 years
EnclosureAluminum housingLifecycle2024
CoolingPassive cooling
fanless design
Operation Ambient
Temperature up to
Relative Humidity

-40° to 70° C
10% to 90%
Weight1,0 kgStorage Ambient
Temperature
Relative Humidity

-40° to 85° C
5% to 95%
