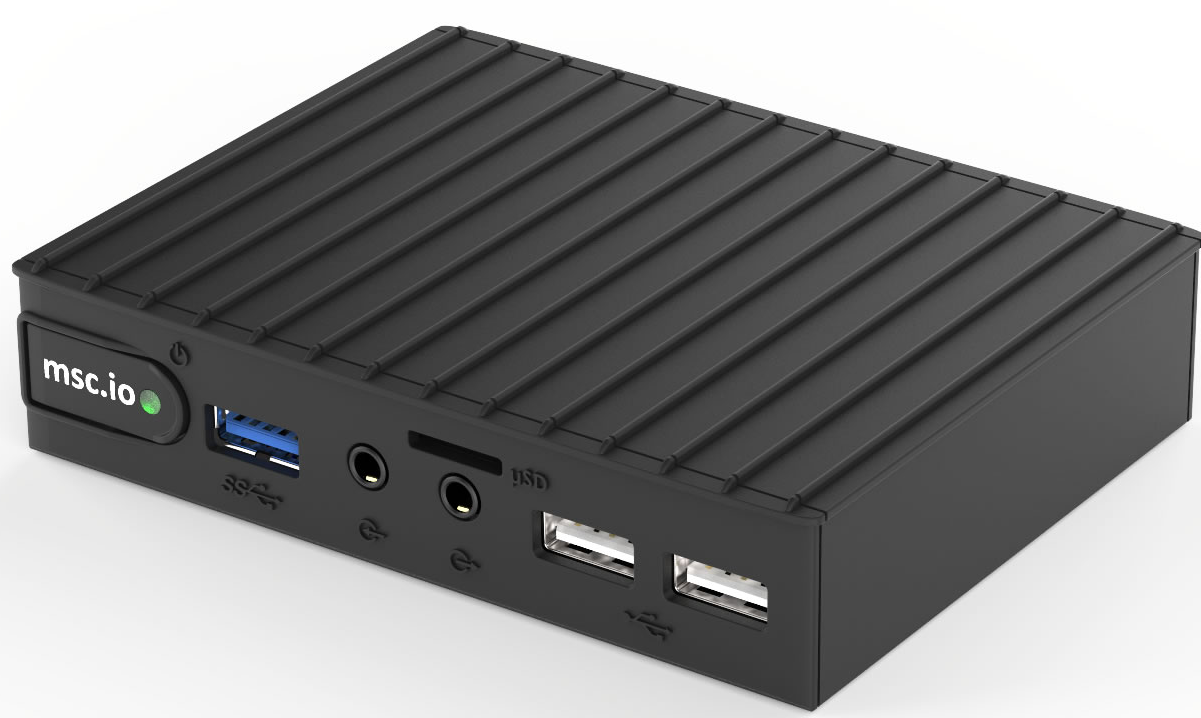

IPC-100 Series
Rugged . aluminium housing 112 x 84 x 25 mm . fanless operating up to +70°C
SoC's ARM or AMD A10-x86 based . Linux Yocto or Linux Debian
5 years warranty
Operating Temp. 0 ... +60 °C
Power supply input DC10 .. 36V
Raspberry Pi3 computer module
ARM Cortex A5 4-core, RAM 1GB
eMMC 4...64GB, SD-Card socket
4x USB, RS485, RS232, CAN
1x Ethernet RJ45,
GSM 3G/4G and WIFI integrated
MTTF > 200.000 h
Lifecycle end 2022
Operating Temp. -40 ... +70 °C
Power supply input DC8 ... 24V
NXP iMX7 Cortex A7 2-core
Coprocessor Cortex M4,
RAM 512 kB .. 2GB
eMMC 4 .. 32GB, SD-Card socket
4x USB, RS485, RS232, CAN
2x ETH, GSM 3G/4G and WIFI
MTTF > 200.000 h
Lifecycle end 2030
Operating Temp. -40 ... +70 °C
Power supply input DC10 ... 15V
NXP iMX8 Cortex A8 4-core
Coprocessor Cortex M4,
RAM 512MB .. 4GB
eMMC 4 .. 64GB, SD-Card socket
4x USB, RS485, RS232, CAN
2x ETH, GSM 3G/4G and WIFI
MTTF > 200.000 h
Lifecycle end 2032
Operating Temp. -40 ... +70°C
Power supply input DC10 ... 15V
AMD A10-micro 6700T SoC
Radeon R6 (2x HDMI 1920x1200)
RAM 4GB .. 16GB
SSD 32 .. 250GB, SD-Card socket
5x USB, RS232, 2x ETH
GSM 3G/4G or WIFI integrated
MTTF > 100.000 h
Lifecycle end 2024
