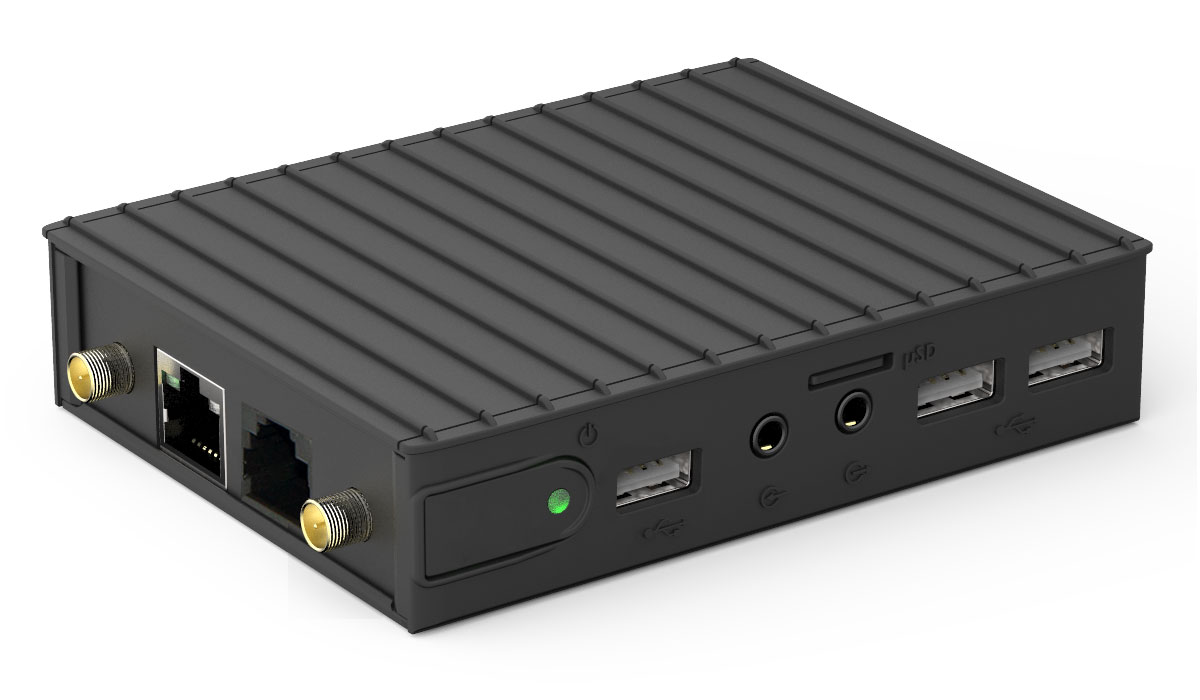

IPC-130

IoT-Gateway with heterogenous system architecture
Size 108 x 83 x 24 mm
Operating  at -40° to 70° C
Warranty 5 years, available until 2032

Mobirise

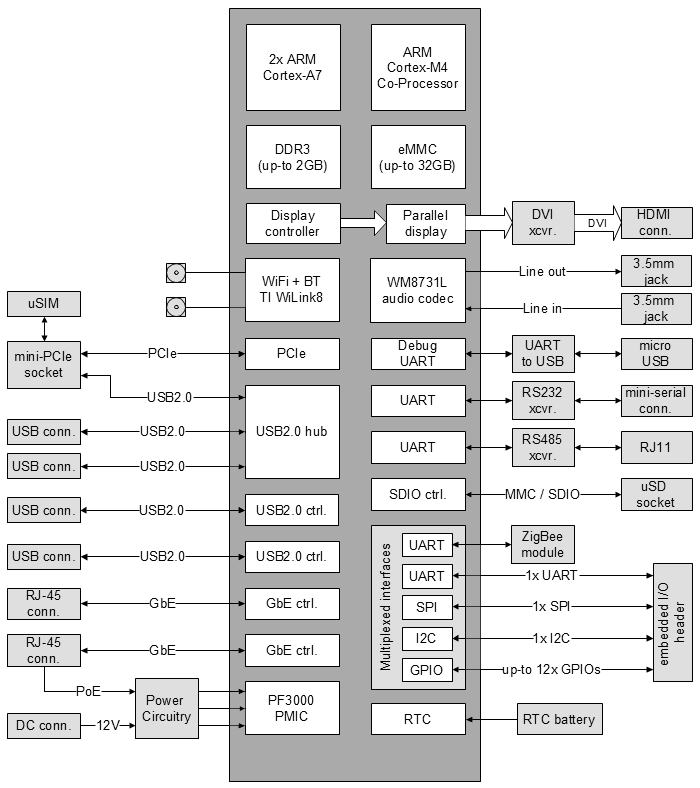

Features and Options

CPUNXP iMX 7Dual ARM Cortex-A7, 1GHz
NEON SIMD and VFPv4
Ethernet1 ... 2x Gigabit Ethernet ports
RJ45 connectors
CoprocessorARM Cortex-M4, 200MhzOption WifiDual-band 2x2 802.11a/b/g/n
RAMDDR3L-1066, soldered
512 MB ... 2 GB
Option BluetoothBluetooth 4.1 BLE
TI WiLink 8 WL1837 module
StorageeMMC flash, 4GB - 32GBOption GSM 3G
Option GSM 4G
3G cellular module, Simcom SIM5360 (EU bands)
4G/LTE cellular module, Simcom SIM7100E (EU bands)
DisplayDVI, up to 1920x1080, HDMI connectorOption RS485
Option CAN
1x RS485 port, half-duplex 2-wire, RJ11 connector
1x CAN bus interface, RJ11 connector
AudioAnalog audio
stereo line-out, stereo line-in
3.5mm jacks
Option GPIOUp-to 12x GPIOs, embedded I/O header
RTCReal time clock operated from
on-board coin-cell battery
Option PoEPower over Ethernet (powered device)
RS2321x RS232 port, ultra-mini serial connector
1x serial console via UART-to-USB bridge,
micro-USB connector
OS-SupportLinux Yoctoc. Linux Debian
BixCS-Runtime

Specification

Power Supply InputDC 8V ... 24VComplianceFCC/CE, RoHS-II
External Power SupplyDC12V / AC240VMTTF> 200,000 hours
Digital I/O-VoltageDC 3.3VWarranty5 years
Dimensions108 x 83 x 24 mmLifecycle2032
EnclosureAluiminiumOperation Ambient
- Temperature
- Relative Humidity

-40 ... 70° C
10% ... 90%
CoolingPassive,
fanless design
Storage Ambient
- Temperature
- Humidity

-40° to 85° C
5% to 95%
Weight0,45 kgMounting OptionsVESA-Adapter
DIN-RAIL-Adapter
